MINIMUM TECH FEATURES:

• Type: Graphical OLED Display Module
• Display Size: 0.96 inch (diagonal)
• Resolution: 128 × 64 pixels
• Display Color: White / Blue (varies by model)
• Display Type: OLED (Organic Light Emitting Diode)
• Interface: I²C (default) / SPI (depending on version)
• Operating Voltage: 3.3V – 5V DC
• Driver IC: SSD1306
• Viewing Angle: >160°
• Power Consumption: <0.08W (typical)
• Dimensions: Approx. 27mm × 27mm × 4mm

DESCRIPTION:

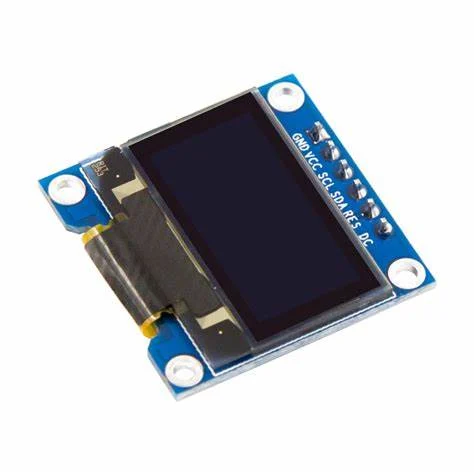

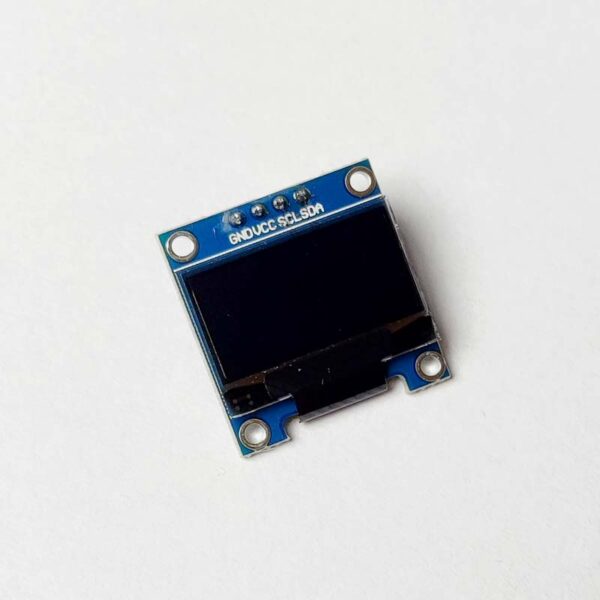

• The 96 Inch OLED Display Module is a compact, high-contrast screen ideal for embedded electronics and IoT projects.
• Based on the SSD1306 controller, it supports both I²C and SPI communication interfaces (depending on module version).
• The display offers 128×64-pixel resolution, providing clear and crisp text or graphics output even in low-light environments.
• It consumes very low power, making it suitable for battery-operated
• Compatible with Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and other microcontroller platforms.
• Libraries such as Adafruit_SSD1306 and U8G2 simplify integration, providing ready-to-use functions for drawing text, shapes, and images.
• The display is self-emissive, meaning each pixel generates its own light—no backlight required—resulting in deep blacks and wide viewing angles.

THEORETICAL REFERENCE:

• OLED Technology:
  OLED (Organic Light Emitting Diode) displays are made from organic materials that emit light when current passes through them—no backlight needed.
• Display Control via SSD1306:
  The SSD1306 driver handles data transfer, refresh, and pixel addressing, supporting 8-bit parallel, SPI, and I²C communication.
• I²C Interface Working:
  Communicates using only two wires (SCL and SDA), making it efficient for compact embedded systems.
• Advantages over LCD:
  Higher contrast, faster refresh rate, and lower power consumption with thinner and lighter design.

APPLICATIONS:

• Embedded System Display Interfaces
• IoT Devices and Wearables
• Sensor Monitoring Screens
• Robotics and Automation Displays
• Battery-powered Gadgets
• DIY Electronics and Education Projects
• Mini Instrumentation Panels

PACKAGE INCLUDES:

• 1 × 0.96 Inch OLED Display Module (SSD1306)
