MINIMUM TECH FEATURES

• Target Gas: Carbon Monoxide (CO)
• Detection Range: 20–2000 ppm
• Heating Voltage (VH): 5V ± 0.1V
• Load Resistance (RL): 10 kΩ (recommended)
• Response Time: < 20 seconds
• Recovery Time: < 30 seconds
• Operating Voltage: 5V DC

DESCRIPTION

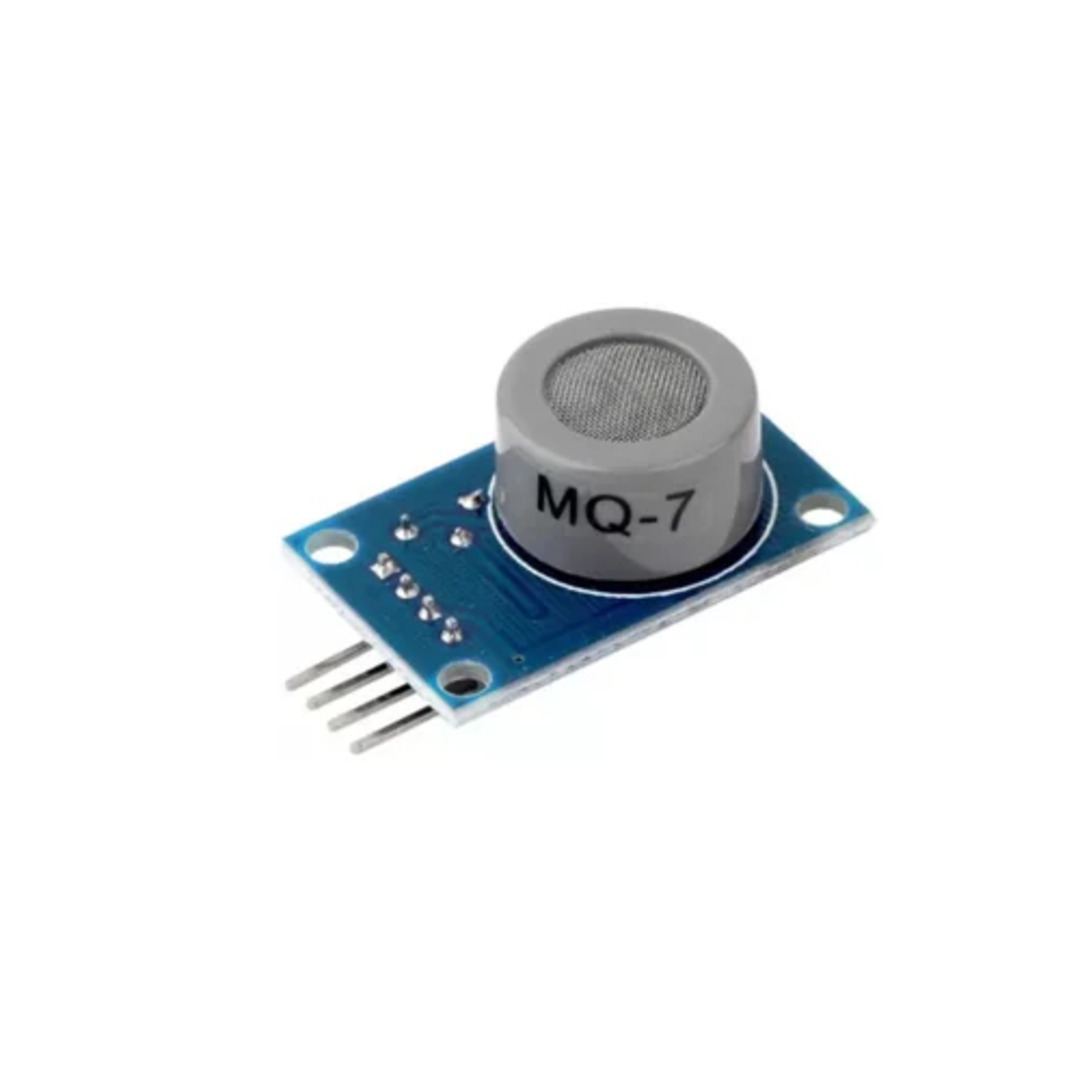

• The MQ-7 Sensor is designed to detect carbon monoxide (CO) accurately in diverse environmental conditions.
• Operates using a tin dioxide (SnO₂) sensitive layer with low conductivity in clean air and increased conductivity when exposed to CO.
• Provides an analog output proportional to CO concentration, ideal for microcontrollers such as Arduino, ESP32, and Raspberry Pi.
• While optimized for CO, it can also exhibit limited sensitivity to gases like hydrogen.
• Features a dual-heating cycle technique (1.5V low heat / 5V high heat) to distinguish CO from other interfering gases.
• Reliable operation across a temperature range of –20°C to +50°C.
• Supports high humidity conditions up to 95% RH (non-condensing).

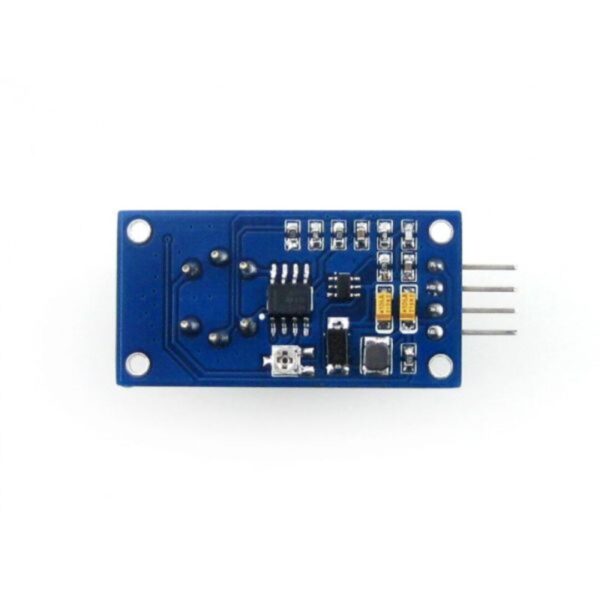

• Usually mounted on a PCB module with load resistor and comparator circuitry for easier interfacing.
• Durable MOS metal-can design, providing long life and stability in indoor and industrial environments.

TECHNICAL SPECIFICATIONS

APPLICATIONS

• Home Carbon Monoxide Detectors
• Vehicle Exhaust Monitoring
• Industrial CO Detection Systems
• Fire & Smoke Safety Alarms
• Portable CO Monitoring Devices
• Smart Home CO Safety Modules
• Air Quality Monitoring Systems
• HVAC System Safety Controls
• Mining & Underground Safety
• Garage and Basement CO Ventilation
• Indoor Air Quality Management
• Laboratory & Chemical Storage Monitoring
• Personal Wearable CO Monitors
• IoT-Based Environmental Monitoring
• Commercial Kitchen Exhaust Safety
