Minimum Technical Features

• On-board LDO voltage regulator
• Compatible with 3.3V and 5V microcontrollers
• All essential passive components pre-soldered
• Ultra-low power consumption: 40 µA in measurement mode, 0.1 µA in standby @ 2.5V
• Tap/Double Tap detection and Free-fall detection
• Analog output for X, Y, and Z axes
• Built-in low-noise linear LDO voltage regulator
• Integrated on-board filters to reduce electrical noise from motors or high-current devices
• Power LED indicator
• Designed for 5V logic level operation

Description

• The ADXL335 is a small, low-power, 3-axis analog accelerometer capable of measuring acceleration in the X, Y, and Z directions. It provides analog voltage outputs proportional to acceleration, making it ideal for applications requiring motion, tilt, or vibration detection.

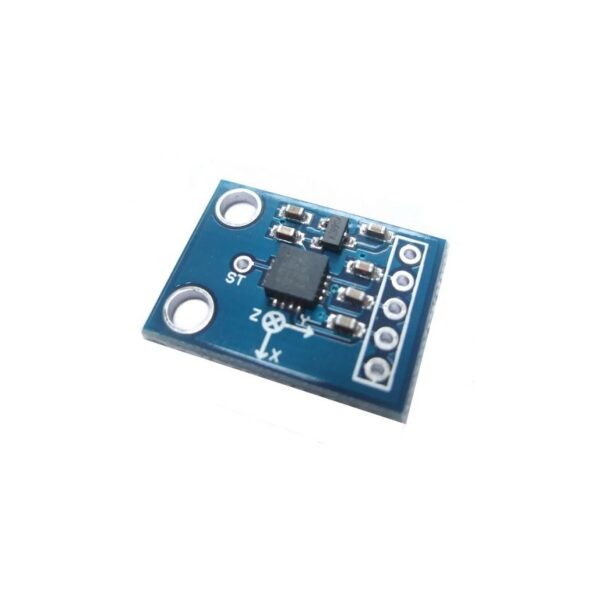

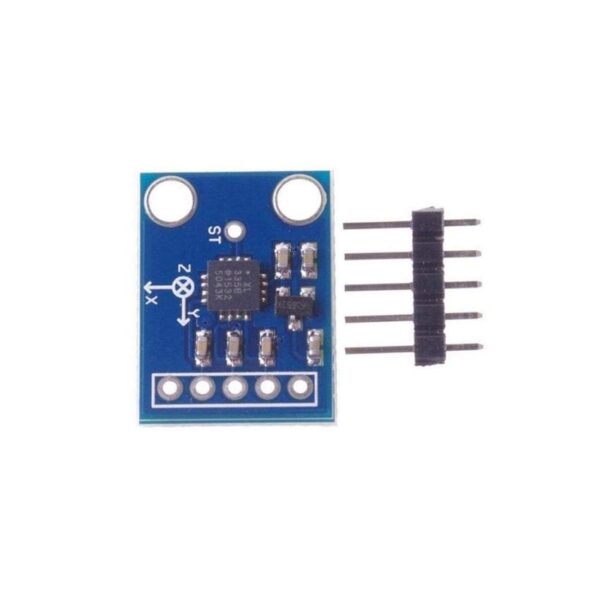

• The ACCELERO-ADXL335-ADC module integrates the ADXL335 sensor along with a built-in voltage regulator and necessary passive components, allowing easy interfacing with 3.3V or 5V systems such as Arduino, Raspberry Pi, or ESP32.
• It is suitable for projects involving gesture control, tilt detection, vibration sensing, and IoT motion monitoring.

Technical Specifications

Applications

• Motion sensing and monitoring
• Tilt and orientation detection
• Vibration and impact measurement
• Gesture-controlled systems
• IoT and embedded projects
• Educational and research purposes
