MINIMUM TECH FEATURES

• Model: MQ-6
• Operating Voltage: 5V DC
• Detecting Range: 200 – 10,000 ppm
• Relative Humidity: <95% RH
• Operating Temperature: –20°C to +40°C
• Power Consumption: 800 mW

DESCRIPTION

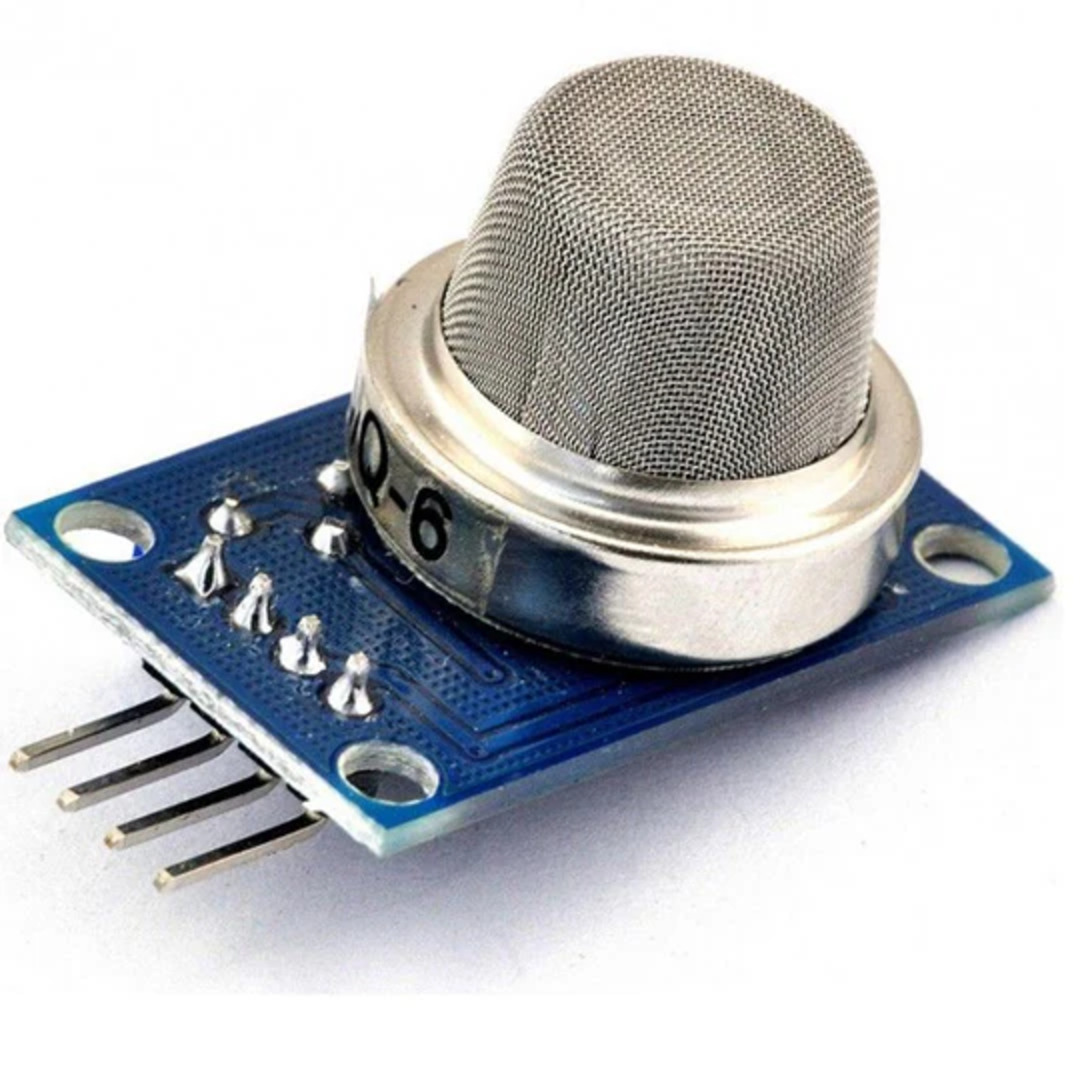

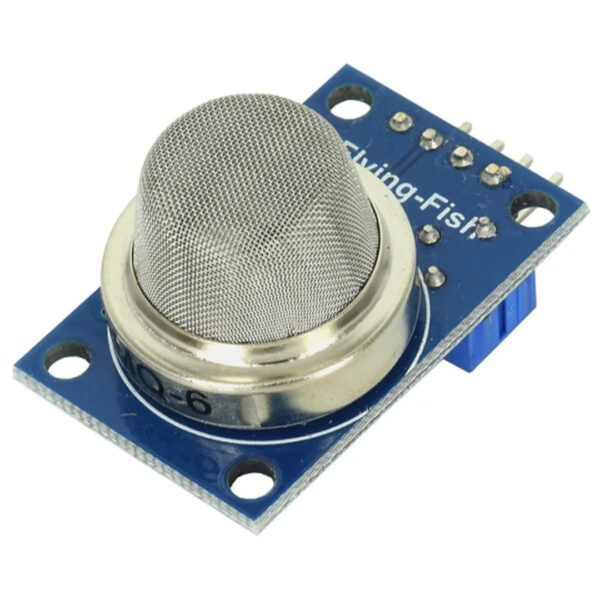

• The MQ-6 Gas Sensor is designed for detecting LPG, propane, and butane gases with high sensitivity.
• It reacts quickly to changes in gas concentration, enabling real-time leak detection.
• Based on SnO₂ (tin dioxide) semiconductor technology, the sensor shows low conductivity in clean air and higher conductivity when exposed to combustible gases.
• Provides both an analog output (for precise readings) and a digital output via an onboard comparator for threshold-based alarms.
• Features fast response and recovery, making it suitable for safety applications.
• Built for long-term stability with minimal drift.
• Consumes low to moderate power, suitable for portable detectors and compact devices.

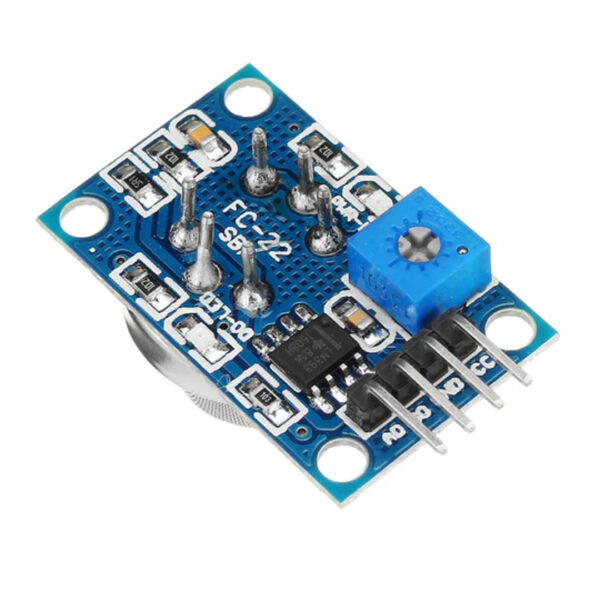

• Includes a simple 4-pin interface: VCC, GND, AO (Analog Output), DO (Digital Output).
• Commonly used in homes, factories, kitchens, gas storage areas for LPG leak detection.
• Also integrated into safety alarms, IoT projects, and industrial monitoring systems.
• Recommended to use in ventilated spaces to prevent sensor saturation or long-term degradation.

TECHNICAL SPECIFICATIONS

APPLICATIONS

• Gas Leakage Detection Systems
• Safety Alarms & Emergency Shutdown Systems
• Portable Gas Detectors
• Smart Home & IoT Warning Devices
• Automated Ventilation and Exhaust Systems
• Embedded Systems and Robotics
• Automotive LPG Detection
• Industrial Process Monitoring
• Medical & Laboratory Equipment
