MINIMUM TECH FEATURES:

• Operating Voltage: 3.3V – 5V DC
• Current Consumption: 20–30 mA (typical)
• Detection Range: 2–30 cm (depends on surface reflectivity)
• Output Type: Digital (High/Low)
• Detection Angle: ~30–45°
• Adjustable Sensitivity via potentiometer
• Built-in power and obstacle-detection indicator LEDs

DESCRIPTION:

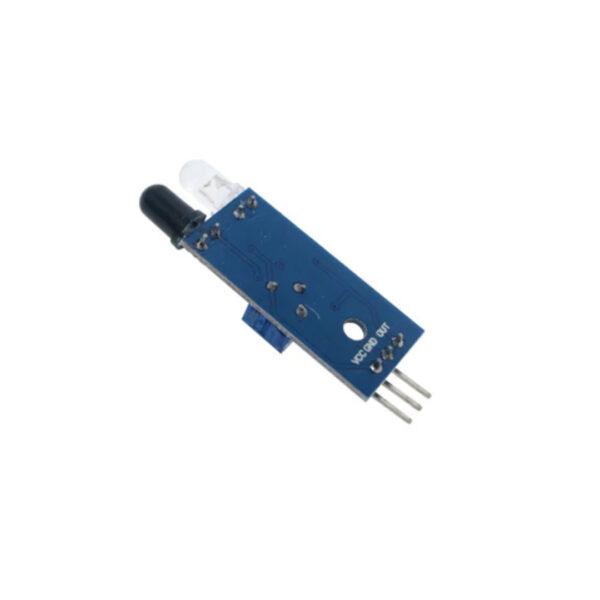

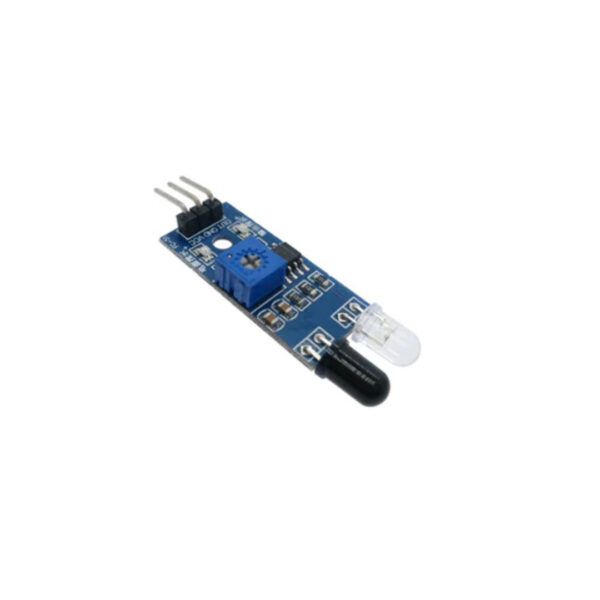

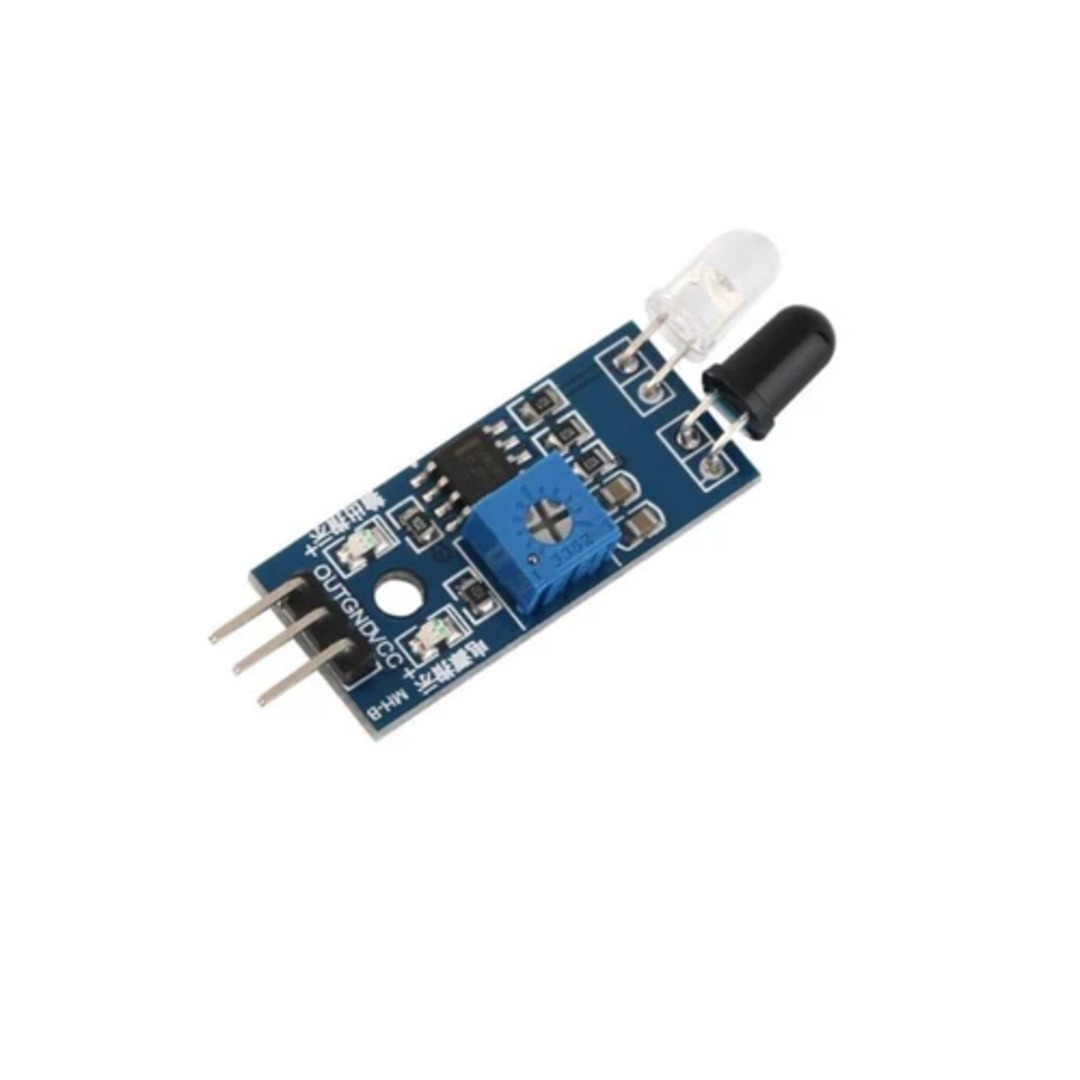

• The module consists of an IR LED emitter and an IR photodiode/phototransistor receiver.
• It detects obstacles by measuring the reflected infrared light from nearby objects.
• Integrated LM393 comparator provides stable, noise-filtered digital output.
• The onboard potentiometer allows sensitivity adjustment, enabling tuning based on object reflectivity and lighting conditions.
• The module provides Active LOW digital output, meaning the output goes LOW when an obstacle is detected.
• LED indicators allow easy debugging—Power LED (always ON) and Output LED (turns ON on detection).
• Ideal for line-following robots, obstacle-avoiding robots, automation, and proximity sensing.

TECHNICAL SPECIFICATION:

APPLICATIONS:

• Robotic Navigation
• Obstacle Avoidance Robots
• Industrial Automation
• Smart Home Devices
• Parking Assistance Systems
• Security / Intrusion Detection
• Consumer Electronics
