Minimum Technical Features:

• Supply voltage: 1.8V to 3.6V
• Digital communication: I²C interface (up to 3.5 MHz)
• Fully factory calibrated for both pressure and temperature
• High resolution and low noise: up to 0.02 hPa (≈17 cm altitude difference)
• Compact and easy-to-use breakout board for direct microcontroller interfacing
• Low power consumption: only 0.5 µA @ 1 Hz measurement rate

Description:

• The BMP180 is a high-precision, low-power barometric pressure and temperature sensor from Bosch Sensortec. It provides precise pressure and temperature readings that can also be used to calculate altitude changes with high accuracy.

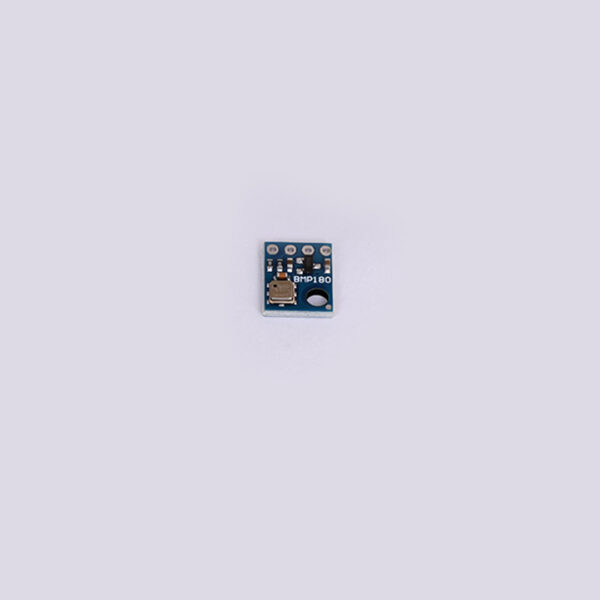

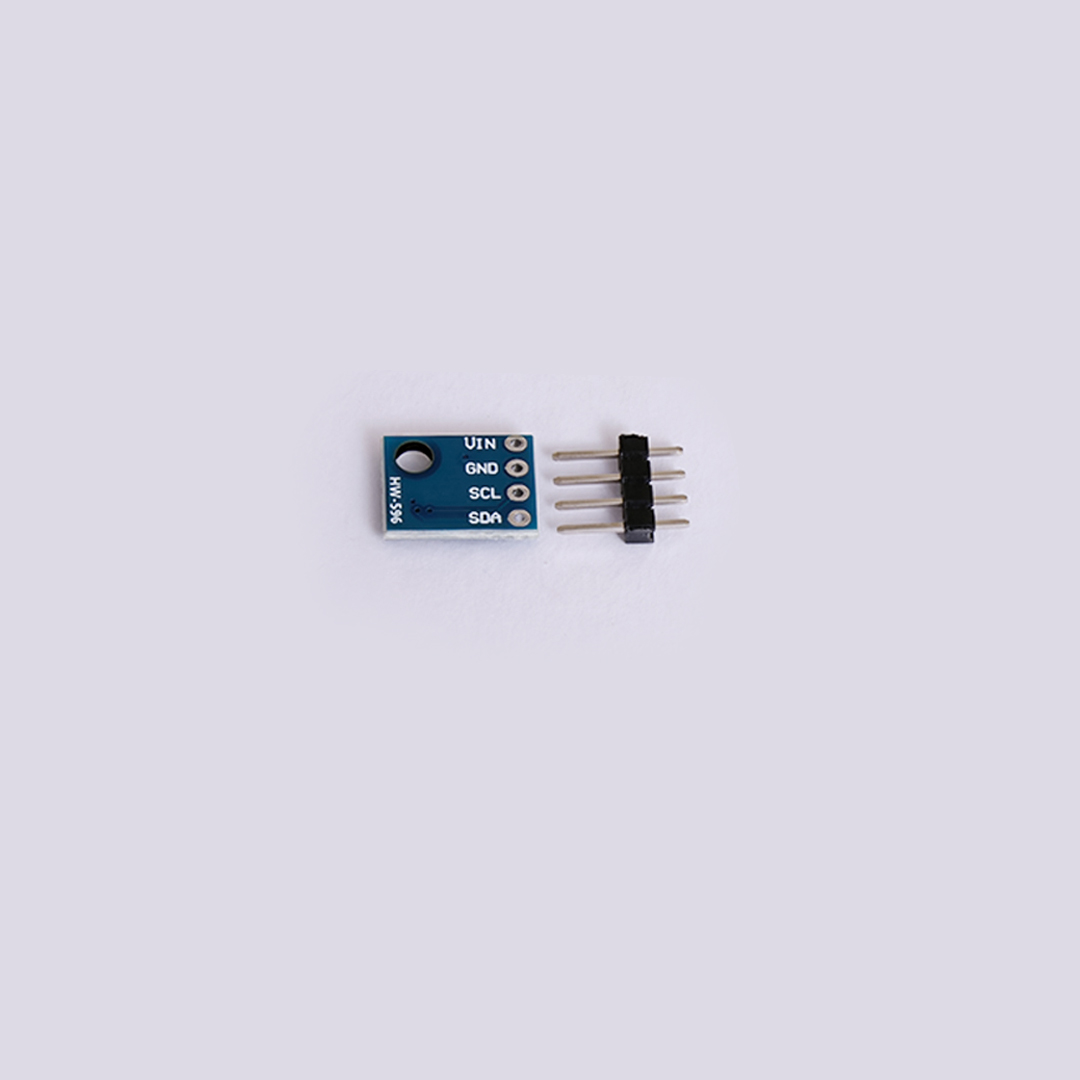

• The BMP180-BAROMETRIC-W module integrates this sensor on a breakout board, simplifying its connection to microcontrollers like Arduino, Raspberry Pi, and ESP32. The board often includes level shifting and regulation circuitry for compatibility with both 3.3V and 5V systems.
• It measures atmospheric pressure over a range of 300 hPa to 1100 hPa (equivalent to altitudes from +9000 m to −500 m). Its integrated temperature sensor enhances pressure calibration for precise results.
• Due to its compact form and digital I²C interface, the BMP180 is ideal for applications in IoT systems, wearable devices, environmental monitoring, navigation, and weather forecasting.

Technical Specifications:

Applications:

• Weather stations and environmental monitoring
• Altitude measurement and navigation systems
• Indoor positioning and mapping
• Wearable and fitness devices
• IoT and smart home sensors
• Robotics and drone altitude control
• Meteorological and research instruments
• Smartphone and tablet barometric sensing
• Weather forecasting systems
