MINIMUM TECH FEATURES:

• Current Measurement Range: ±20 A
• Supply Voltage: Typically 5 V DC
• Output Voltage: 5 V to 4.5 V (corresponding to -20 A to +20 A)
• Sensitivity: 100 mV/A (for the 20 A version)
• Bandwidth: Up to 80 kHz
• Response Time: Fast response, suitable for dynamic measurements
• Isolation Voltage:1 kV RMS (providing electrical isolation between the sensor and the measured circuit)
• Operating Temperature Range: -40 °C to +85 °C

DESCRIPTION:

• Provides an analog voltage output that is directly proportional to the measured current.
• Uses the Hall-effect to detect the magnetic field produced by the current flowing through an internal copper conductor.
• Offers high precision with low offset voltage, ensuring accurate current measurements.
• Provides galvanic isolation between the high-current path and the signal side (rated 1 kV RMS isolation voltage).
• Designed to operate within a specific temperature range for reliable performance in various conditions.

PACKAGE INCLUDES:

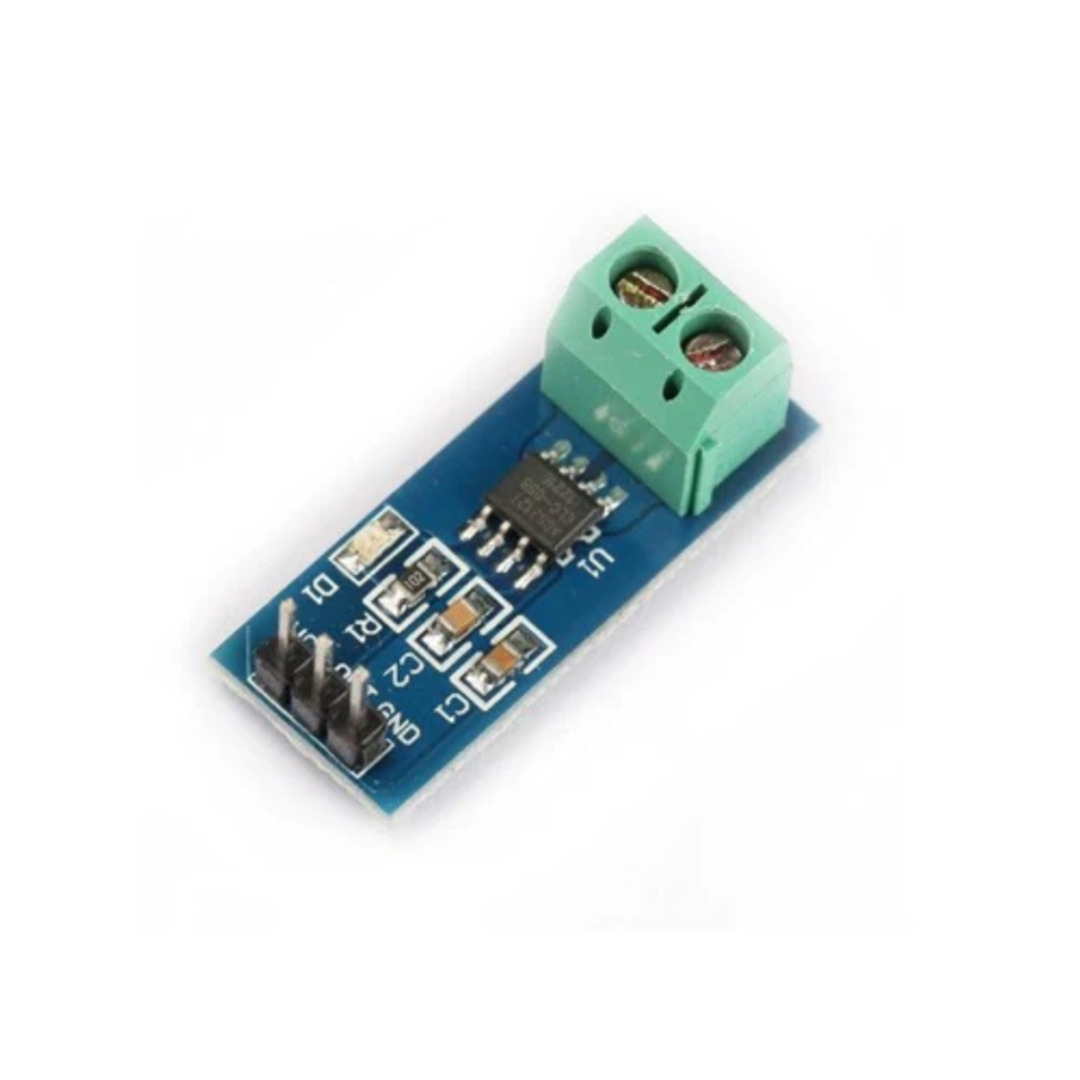

• 1 x 20A Range Current Sensor Module ACS712
