MINIMUM TECH FEATURES

• Type: BO (Battery Operated) DC Gear Motor
• Shaft Type: Dual Shaft (Left + Right Output)
• Rated Speed: 60 RPM
• Operating Voltage: 3V – 12V DC
• Gear Ratio: 1:220
• Stall Torque: ~1.2–1.5 kg-cm
• Rated Torque: ~0.6–0.8 kg-cm
• No-Load Current: 40–100 mA
• Load Current: 150–300 mA
• Shaft Diameter: 6 mm (D-shaped)
• Gearbox Type: Plastic gearbox
• Mounting: Body-mounted screws
• Noise Level: Low noise operation

DESCRIPTION

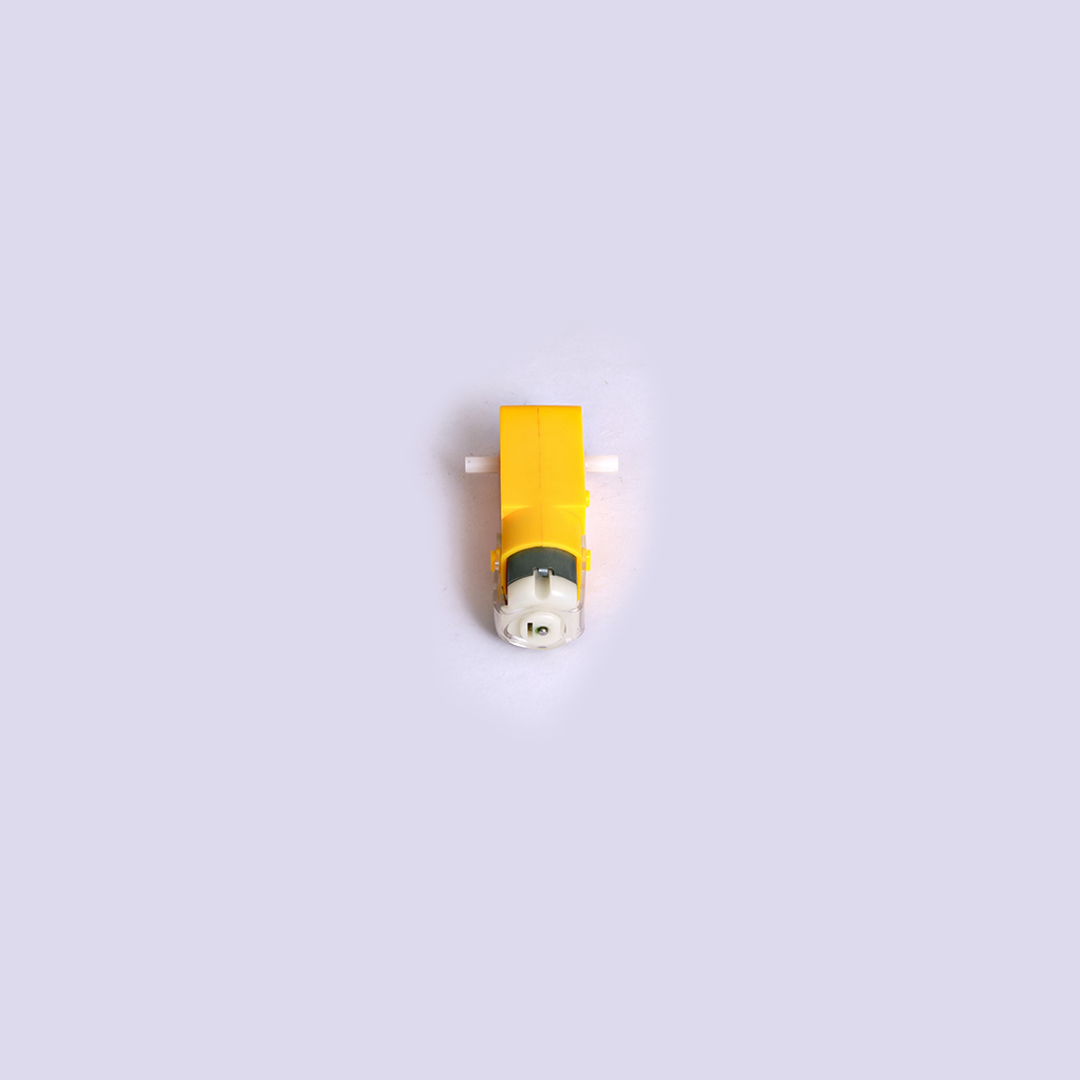

• The 60 RPM BO Motor (Dual Shaft, 1:220 Gear Ratio) is a widely used DC gear motor designed for robotics, educational projects, and small automation systems. The dual-shaft design allows for additional encoder wheels, sensors, or mechanical attachments on the second shaft—ideal for speed sensing or position feedback in robotics.
• Operating between 3V and 12V, this motor delivers a balanced combination of moderate torque, stable speed, and low power consumption, making it ideal for lightweight and medium-duty robotic applications.
• The 1:220 gear ratio ensures controlled movement with increased torque output, while the compact plastic gearbox makes it suitable for chassis builds, robotic arms, mobile robots, and DIY STEM projects.

TECHNICAL SPECIFICATIONS

APPLICATIONS

• Line-Follower Robots
• Obstacle-Avoidance Robots
• Encoder-Based Robots
• Smart Car Kits
• Educational Robotics Projects
• Small Conveyor Systems
• DIY Mechatronics
• Solar-Powered Robot Kits
• STEM Training Kits
• Prototyping & Research Models
