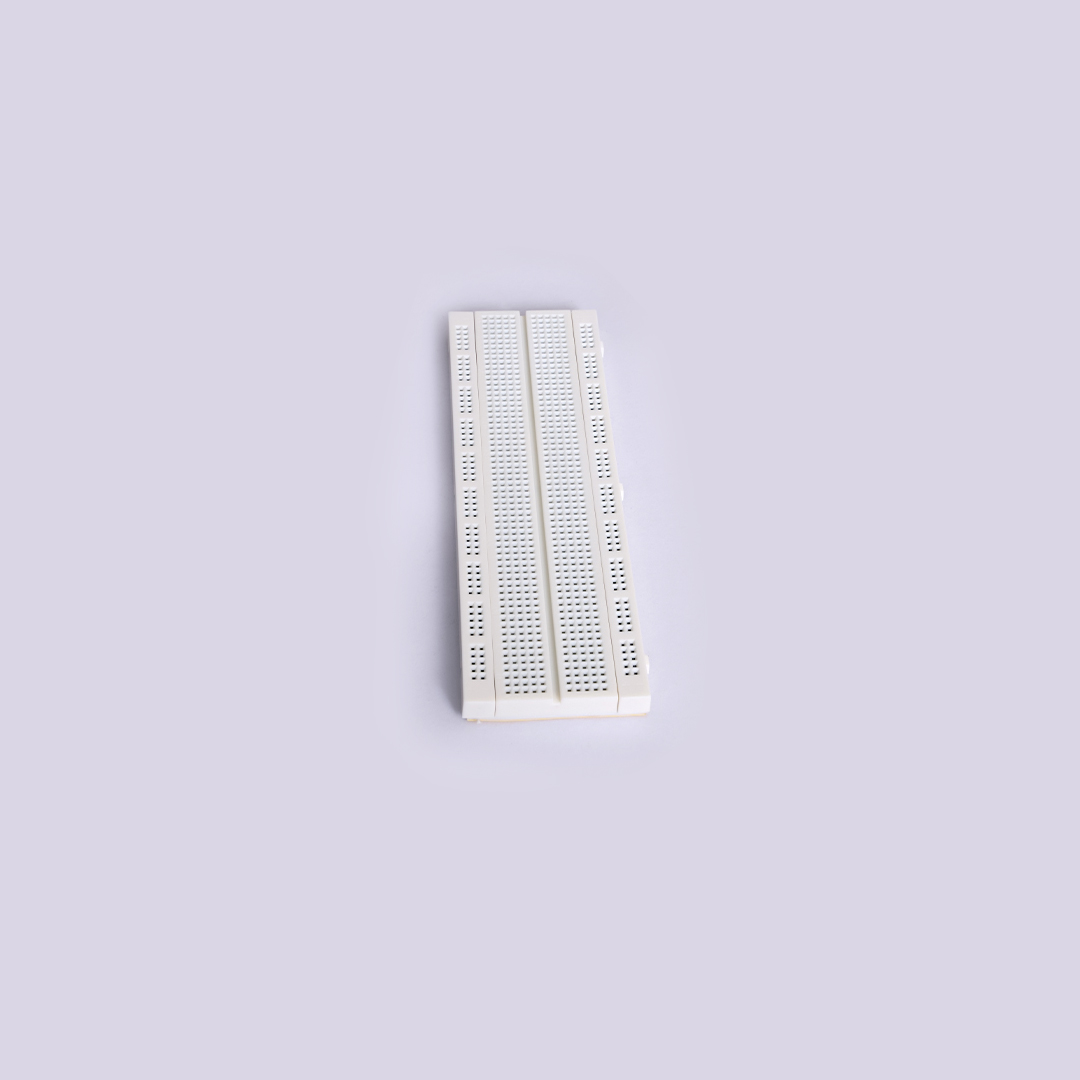

BREADBOARD BIG – 840 POINTS

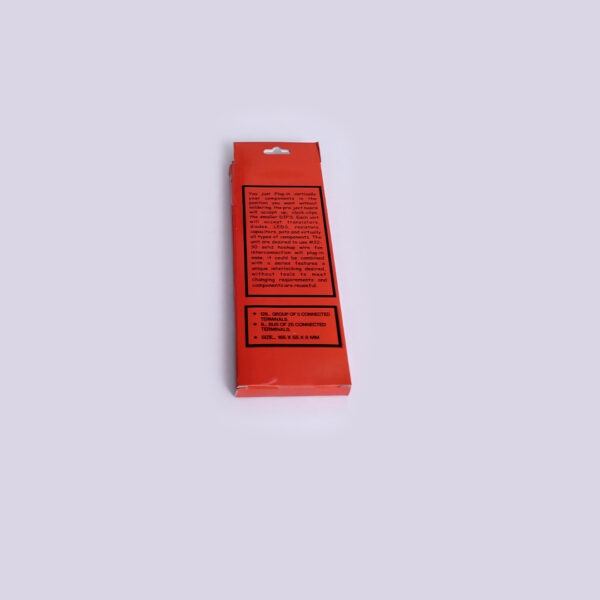

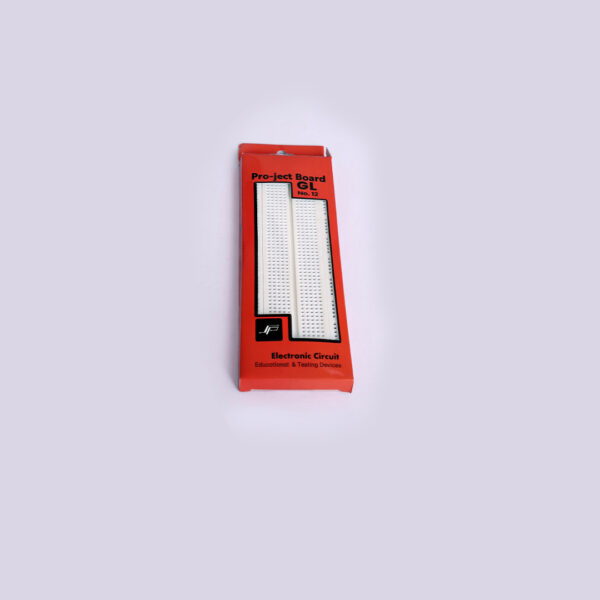

PACKAGE INCLUDES:
- 1 × Breadboard (840 Points)
BREADBOARD BIG – 840 POINTS
Description
MINIMUM TECH FEATURES:
- 840 tie-points (interconnected)
- Includes power rails on both sides
- Suitable for most DIP ICs and components
- Self-adhesive backing for easy mounting
- Reusable, solder-free connections
- Standard 0.1″ (2.54 mm) pitch
- Compatible with Arduino, Raspberry Pi, and sensors
- High-quality ABS plastic body
- Nickel-plated phosphor bronze contacts
DESCRIPTION:
- The 840-Point Big Breadboard is a high-quality, solderless prototyping board ideal for electronics learners, hobbyists, and developers.
- It offers 840 connection points, including two full-length power rails, making it perfect for medium-to-large-scale circuit prototyping.
- The breadboard uses nickel-plated spring contacts for firm component grip and long life.
- Its double-sided adhesive pad and screw-mounting slots make installation easy on any project surface.
- This board is widely used for Arduino projects, sensor prototyping, IoT development, robotics, and educational electronics experiments.
SPECIFICATION:
| Parameter | Details |
| Total Tie-Points | 840 |
| Main Board Points | 630 |
| Power Rail Points | 210 (2 × 105) |
| Pitch | 2.54 mm (0.1″) |
| Body Material | ABS Plastic |
| Contact Material | Nickel-plated phosphor bronze |
| Color | White |
| Dimensions | Approx. 17.3 × 6.5 × 0.9 cm |
| Mounting | Adhesive backing + screw slots |
| Reusability | Yes, solderless |
APPLICATIONS:
- Microcontroller prototyping
- IoT development
- Educational and lab electronics
- DIY robotics
- Sensor interface testing
- Signal testing and debugging
- Temporary project wiring
