MINIMUM TECH FEATURES

• Flash LED (off): 180 mA @ 5 V
• Flash LED (max brightness): 310 mA @ 5 V
• Deep-sleep current: 6 mA @ 5 V (min)
• Modem-sleep current: 20 mA @ 5 V (min)
• Light-sleep current: 6.7 mA @ 5 V (min)

DESCRIPTION

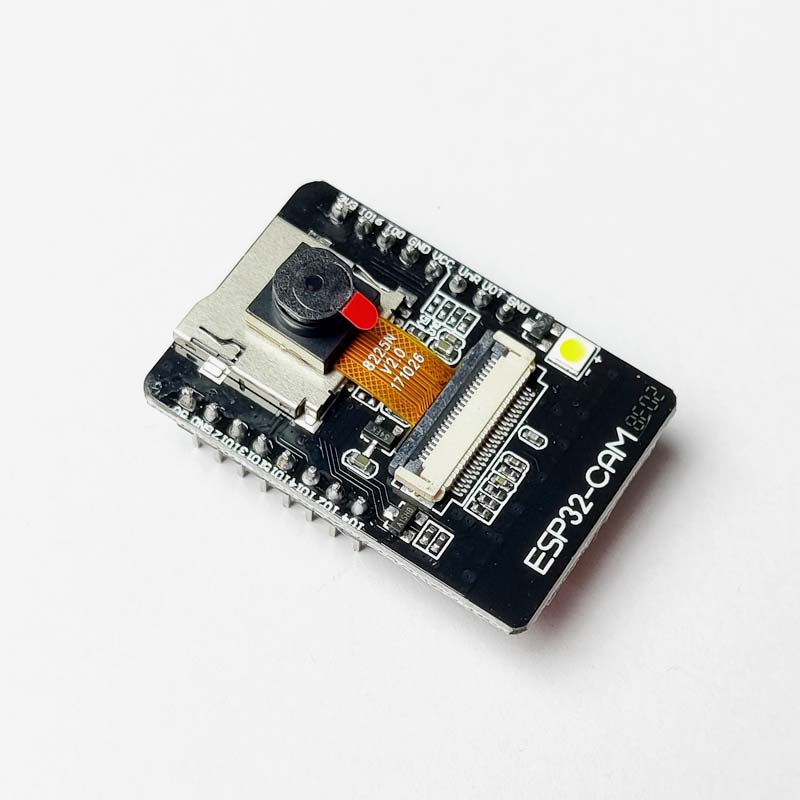

• High-performance dual-core microcontroller with integrated Wi-Fi and Bluetooth functionality for IoT and embedded camera applications.

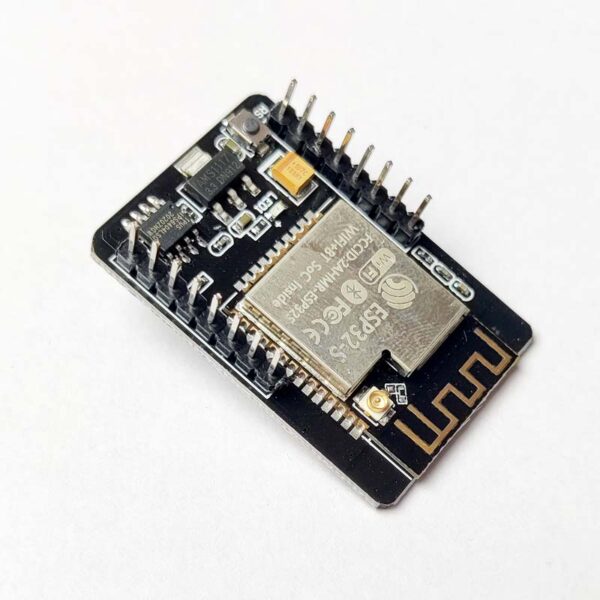

• Built on ESP32 SoC featuring dual-core Tensilica LX6 processor with ample memory for multitasking.

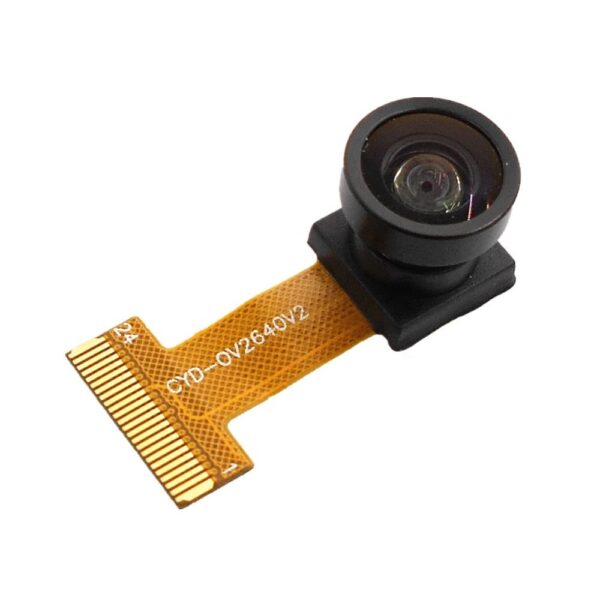

• Equipped with OV2640 2 MP camera sensor capable of capturing images up to 1600 × 1200 pixels (UXGA)
• Supports image formats: JPEG, YUV, RGB565, and BMP (depending on camera mode).
• Includes microSD card slot for onboard storage of images and video.
• Features onboard PCB antenna and external antenna connector for improved Wi-Fi performance.
• Compatible with Arduino IDE, ESP-IDF, and MicroPython, allowing flexible development environments.
• Suitable for IoT, surveillance, smart home, and robotics applications requiring compact visual sensing capability.
• Offers Wi-Fi 802.11 b/g/n and Bluetooth 4.2 (BR/EDR + BLE)
• Compact, low-cost solution for edge vision applications; however, not optimized for high-end image processing tasks.

TECHNICAL SPECIFICATIONS

APPLICATIONS

• Remote and Environmental Monitoring
• Surveillance and Security Systems
• Vision-Based Robotics
• Smart Home and Automation Devices
• Educational IoT and Vision Projects
• Industrial Inspection Systems
• Wildlife and Field Monitoring
• Live Video Streaming or Motion Detection
