MINIMUM TECH FEATURES:

• Weighing Range: 0 ~ 1 kg
• Rated Output: 1.0 ± 0.1 mV/V
• Nonlinear Output: ± 0.03% F.S.
• Input Impedance: 1066 ± 10% Ω
• Output Impedance: 1000 ± 10% Ω
• Insulation Resistance: ≥ 2000 MΩ
• Material: Aluminum alloy construction for lightweight durability
• Operating Temperature: -20°C to +65°C

DESCRIPTION:

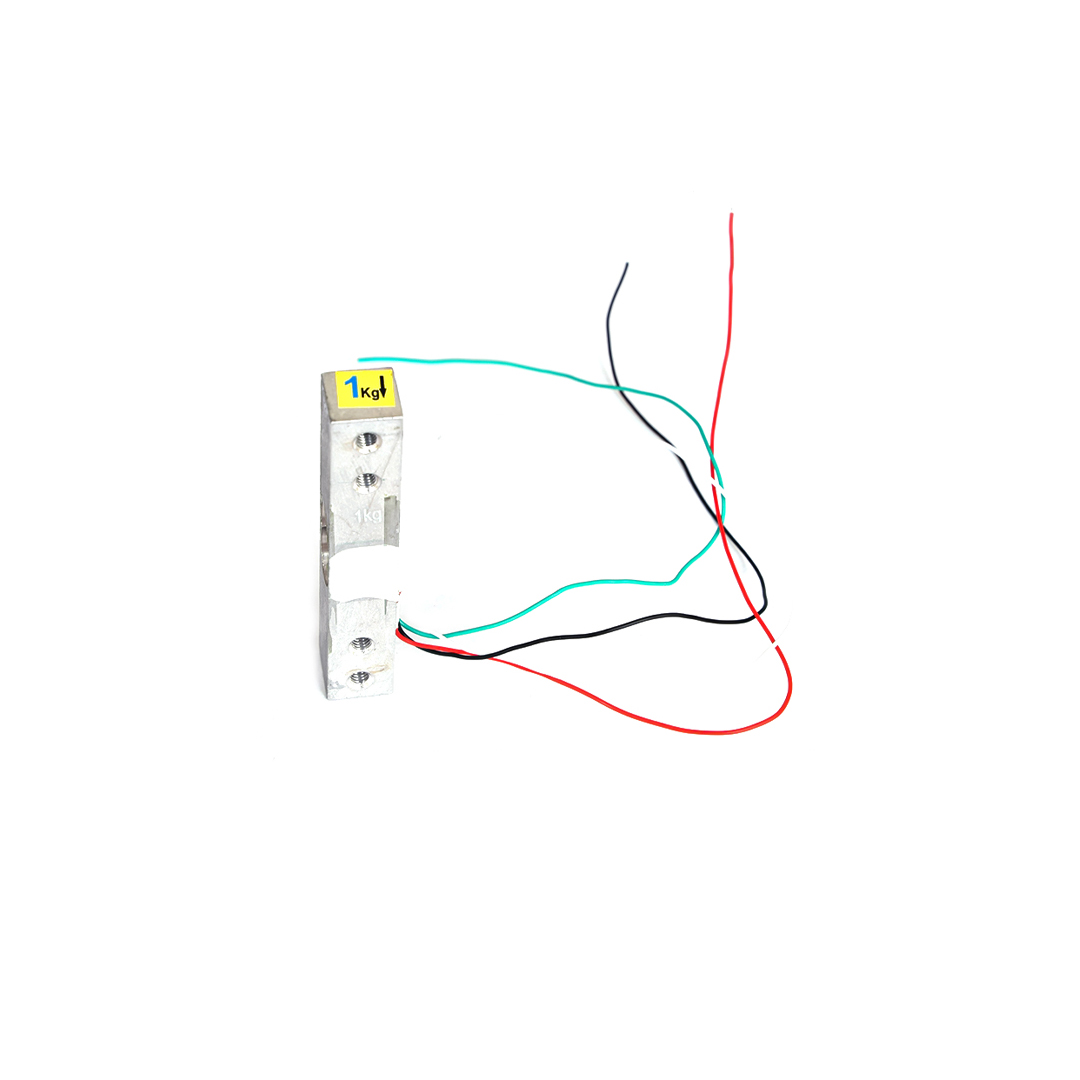

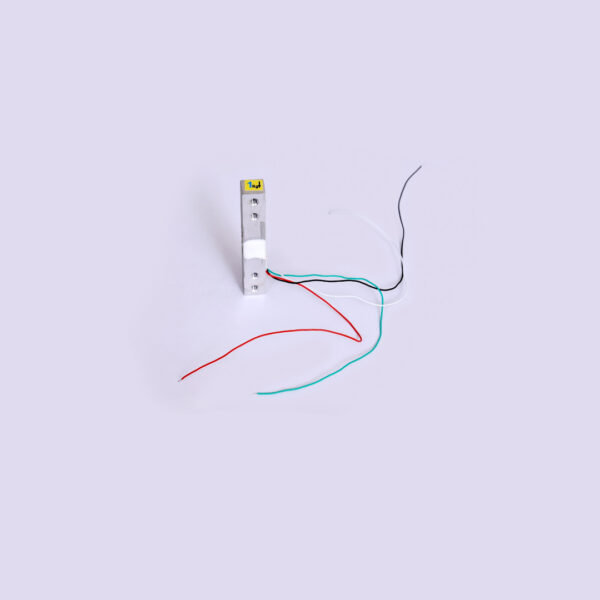

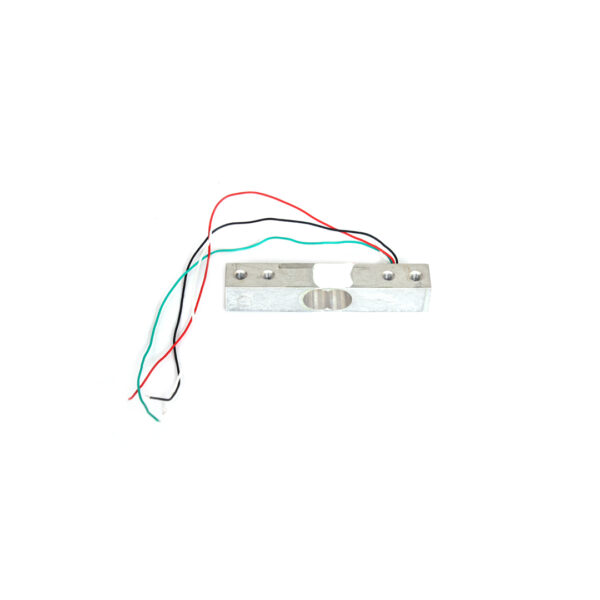

• The LOAD-MINI-1KG is a compact, high-precision load cell sensor designed for measuring weights up to 1 kilogram with excellent linearity and stability.
• Built using durable aluminum alloy, it provides both lightweight construction and robust performance, suitable for embedded weighing systems and compact scales.
• The sensor operates on the principle of strain gauge measurement, converting applied force into a measurable electrical signal (mV output).
• Its small form factor makes it ideal for DIY projects, IoT-based weighing systems, and educational setups.
• When paired with an amplifier module like the HX711, the load cell can easily interface with Arduino, Raspberry Pi, and other microcontrollers, enabling precise digital weight measurement.
• It ensures high repeatability, low hysteresis, and long-term reliability under stable load conditions.

TECHNICAL SPECIFICATIONS:

APPLICATIONS:

• Fitness and Exercise Equipment
• Rehabilitation and Therapy Devices
• Educational and Demonstration Kits
• Industrial Automation and Measurement
• IoT-based Smart Scales
• Precision Engineering Projects
• Agricultural and Livestock Weighing
• Home and Hobby Projects
• DIY Electronic Weighing Systems
