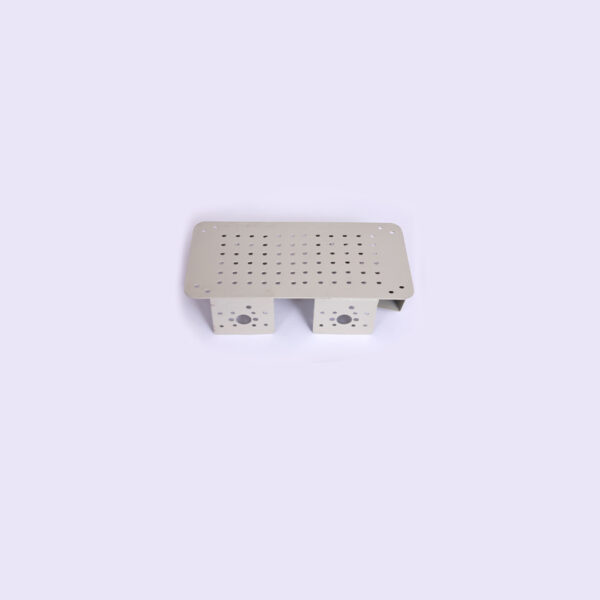

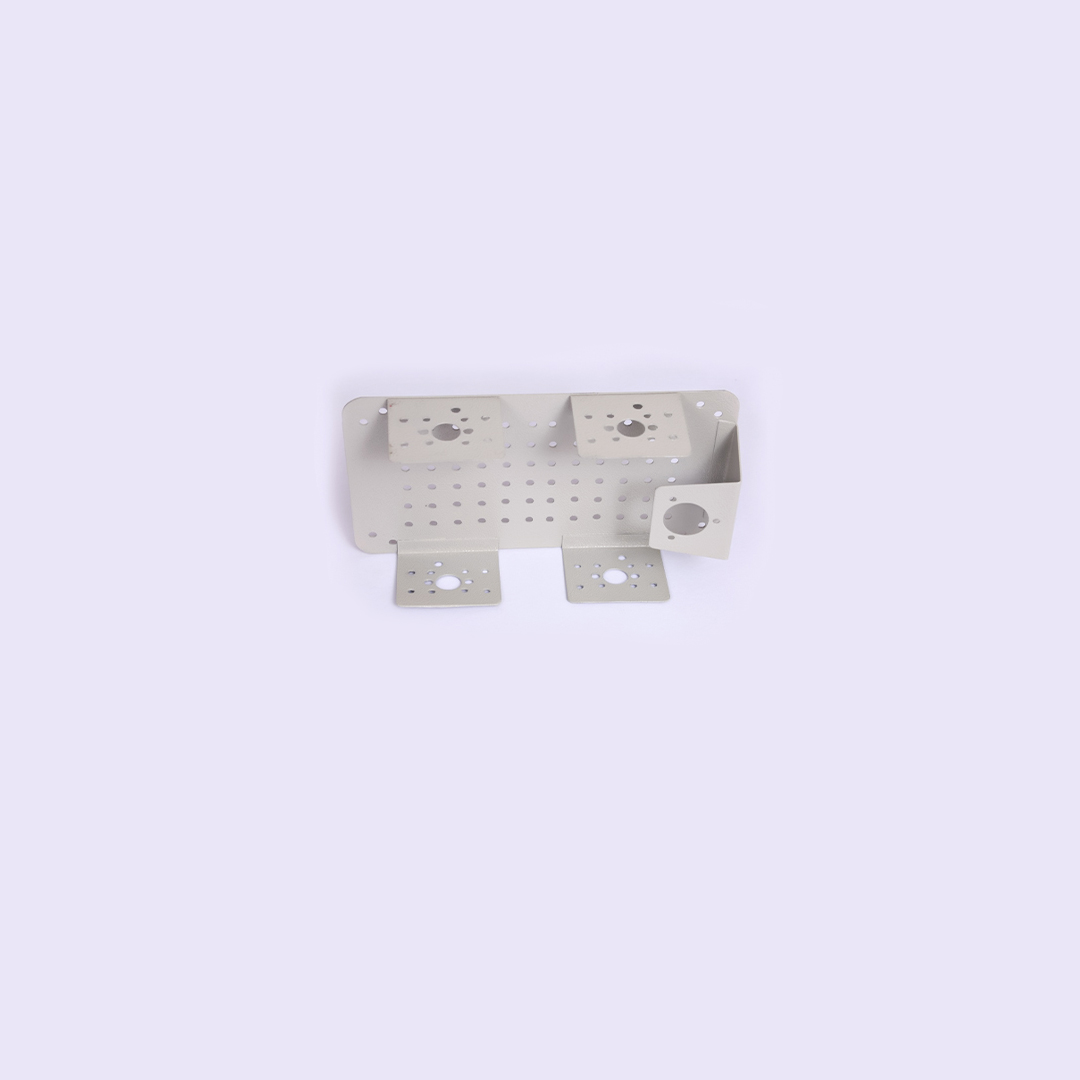

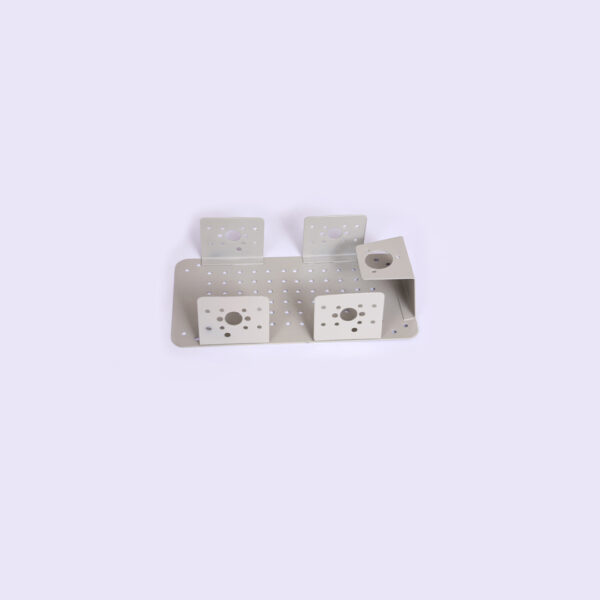

MINIMUM TECH FEATURES:

• Dimensions: 193 × 102 × 46 mm (L × W × H)
• Weight: 270 g
• Material: Metal Sheet
• Colour: Grey
• Sheet Thickness: 1.2 mm
• Motor Fitting Hole Diameter: 13.75 mm
• Perforated Hole Diameter: 3 mm

DESCRIPTION:

• Metal chassis holes serve multiple essential functions across mechanical, electrical, and robotic applications.
• They provide mounting points for securely attaching motors, sensors, PCBs, and mechanical components using screws, bolts, or rivets.
• Strategically placed holes allow efficient cable routing, reducing clutter, tangling, and potential wear on wires.
• Several holes’ act as ventilation openings, supporting airflow to dissipate heat in enclosed electronics.
• Holes can also serve as structural anchor points, improving rigidity and enabling the addition of reinforcements or brackets.
• In many electrical enclosures, chassis holes are used for grounding connections, enhancing electrical safety.
• Overall, the chassis design supports mechanical stability, customization, and compatibility with DIY and robotic projects.

TECHNICAL SPECIFICATIONS:

APPLICATIONS:

• Mounting and Fastening
• Ventilation and Cooling
• Cable Management
• Robotics Assembly
• DIY Manufacturing
• Custom Modifications
• Structural Reinforcement
• Electrical Grounding
