MINIMUM TECH FEATURES

• Digital temperature and humidity sensor
• Operating Voltage: 3.3V to 5V
• Temperature Range: 0°C to 50°C
• Humidity Range: 20% to 80% RH
• Temperature Accuracy: ±2°C
• Humidity Accuracy: ±5% RH
• Sampling Rate: 1 Hz (1 reading per second)
• Output: Digital (single-wire protocol)
• Interface: Proprietary single-wire communication
• Dimensions: 15mm × 25mm × 7mm

DESCRIPTION

• The DHT11 is a compact and cost-effective digital sensor capable of measuring both temperature and relative humidity.
• It outputs data in digital form, making it easy to interface with microcontrollers like Arduino, ESP8266, ESP32, and Raspberry Pi.
• It uses a single-wire communication protocol that includes start signals, data transmission, and checksum-based error checking.

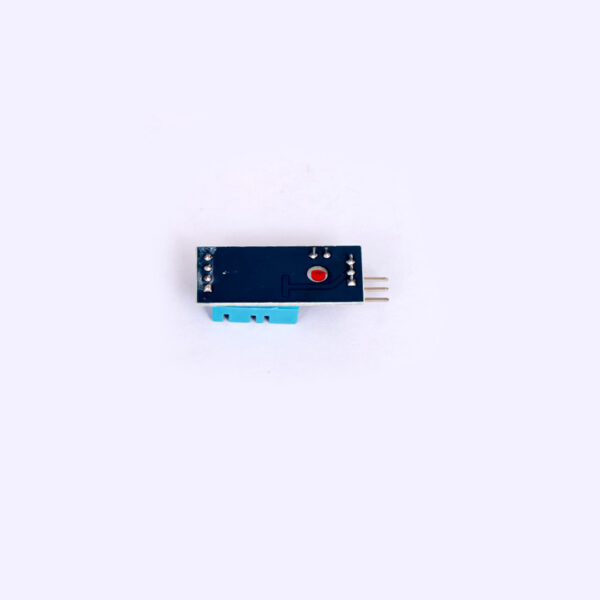

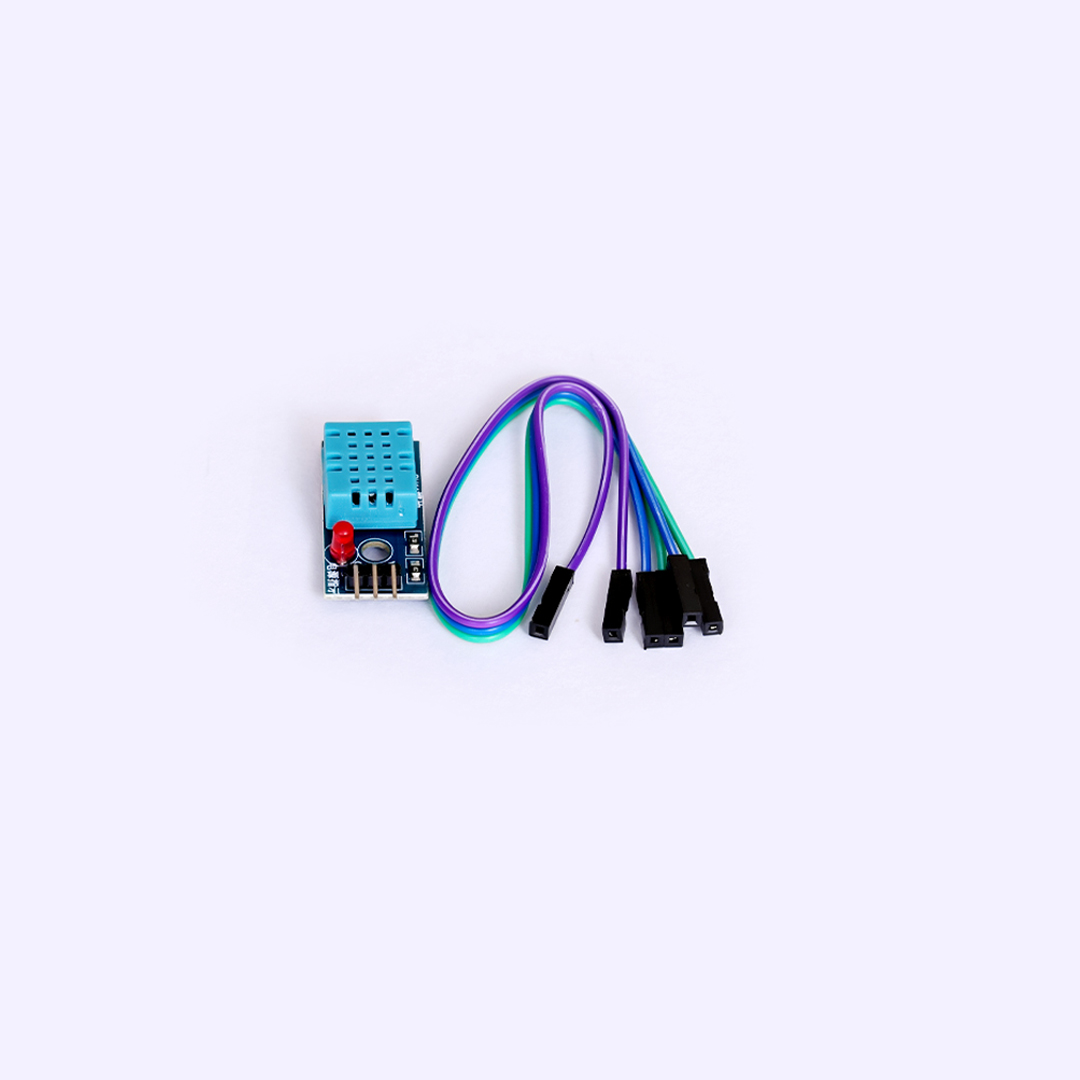

• Often provided as a module, it includes onboard resistors and capacitors for signal conditioning.
• The DHT11 is housed in a protective casing with pre-soldered pins, providing durability and ease of integration.
• The sensor requires minimal external components, making it suitable for beginners and quick project development.
• Ideal for applications needing moderate accuracy in indoor environments.

TECHNICAL SPECIFICATIONS

APPLICATIONS

• Home Automation
• Weather Stations
• Greenhouses
• HVAC Systems
• Data Logging
• Industrial Automation
• Healthcare Monitoring
• Educational & Research Projects
• IoT Devices
• Consumer Electronics
