MINIMUM TECH FEATURES:

• Operating Voltage: 5 V DC
• Sonar Sensing Range: 2 cm – 400 cm
• Maximum Effective Range: 450 cm
• Frequency: 40 kHz
• Sensing Angle: 15°
• Mounting Hole Diameter: 3.8 mm
• PCB Thickness: 2.8 – 3.1 mm
• Mounting Bracket Material: Acrylic (optional)

DESCRIPTION:

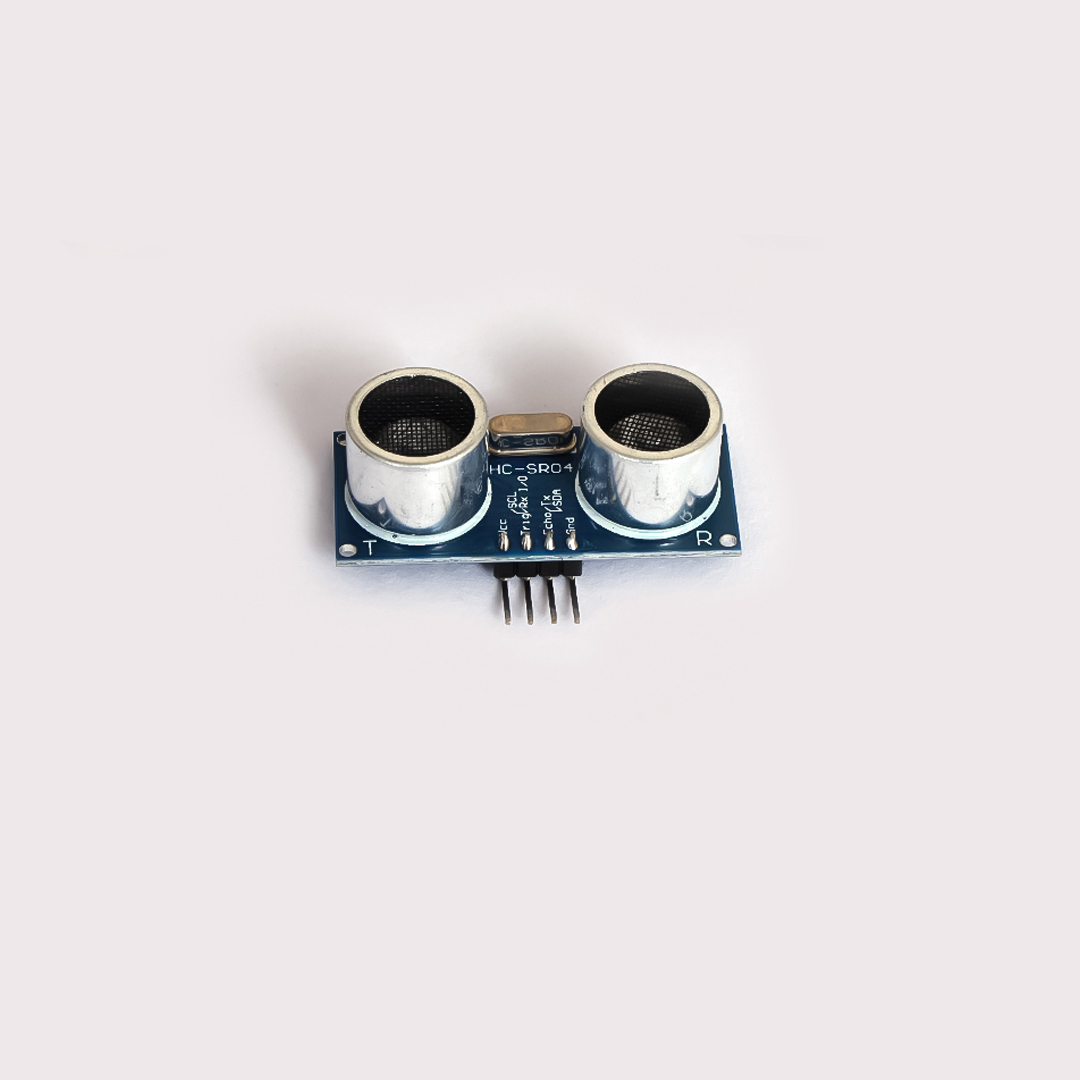

• The HC-SR04 Ultrasonic Distance Sensor is a popular and affordable device used for distance measurement and object detection.
• It works by emitting ultrasonic sound waves at 40 kHz from its transmitter. When these waves encounter an obstacle, they reflect back to the receiver.
• The sensor measures the time delay between transmission and reception of the ultrasonic pulse to calculate distance using the formula:
• Distance = (Time × Speed of Sound) / 2
• A 10 µs trigger pulse starts a measurement cycle, making it easy to use with microcontrollers such as Arduino, ESP32, or Raspberry Pi.
• Features low power consumption, stable operation, and high precision for indoor or outdoor use.
• Commonly used in robotics, automation, and IoT projects requiring obstacle detection or range measurement.

TECHNICAL SPECIFICATIONS:

APPLICATIONS:

• Distance Measurement
• Obstacle Detection and Avoidance
• Level Measurement (Liquid/Solid)
• Security Systems and Intrusion Detection
• Gesture and Motion Recognition
• Parking Assistance Systems
• Flow or Presence Detection
• Robotics Navigation and Mapping
• Smart Automation & IoT Devices
