MINIMUM TECH FEATURES:

• Interface: I2C (Inter-Integrated Circuit)
• Compatibility: Works with standard HD44780-based LCDs
• I2C Address: Usually 0x27 or 0x3F (depends on the module)
• Operating Voltage: Typically 5 V
• Backlight Control: Supports backlight control via the I2C interface
• Connections: Typically includes SDA (data line), SCL (clock line), VCC (power), and GND (ground) pins.

DESCRIPTION:

• It simplifies the wiring and control of LCDs, reducing the number of pins required from the microcontroller.
• It typically works with 16×2, 20×4, and other standard sizes of character LCD displays.
• Allows multiple devices (LCDs and others) to share the same bus.
• Some adapters allow setting different I2C addresses, enabling multiple LCDs on the same bus.
• Supports control of the LCD backlight through software.
• Provides software-based contrast adjustment for optimal display readability.
• Commonly used in projects where reducing wiring complexity and conserving microcontroller pins are priorities.
• It’s prevalent in hobbyist electronics, IoT projects, and embedded systems.
• Easily integrates with popular microcontrollers like Arduino, Raspberry Pi, ESP8266, ESP32, etc., through available libraries and example code.

PACKAGE INCLUDES:

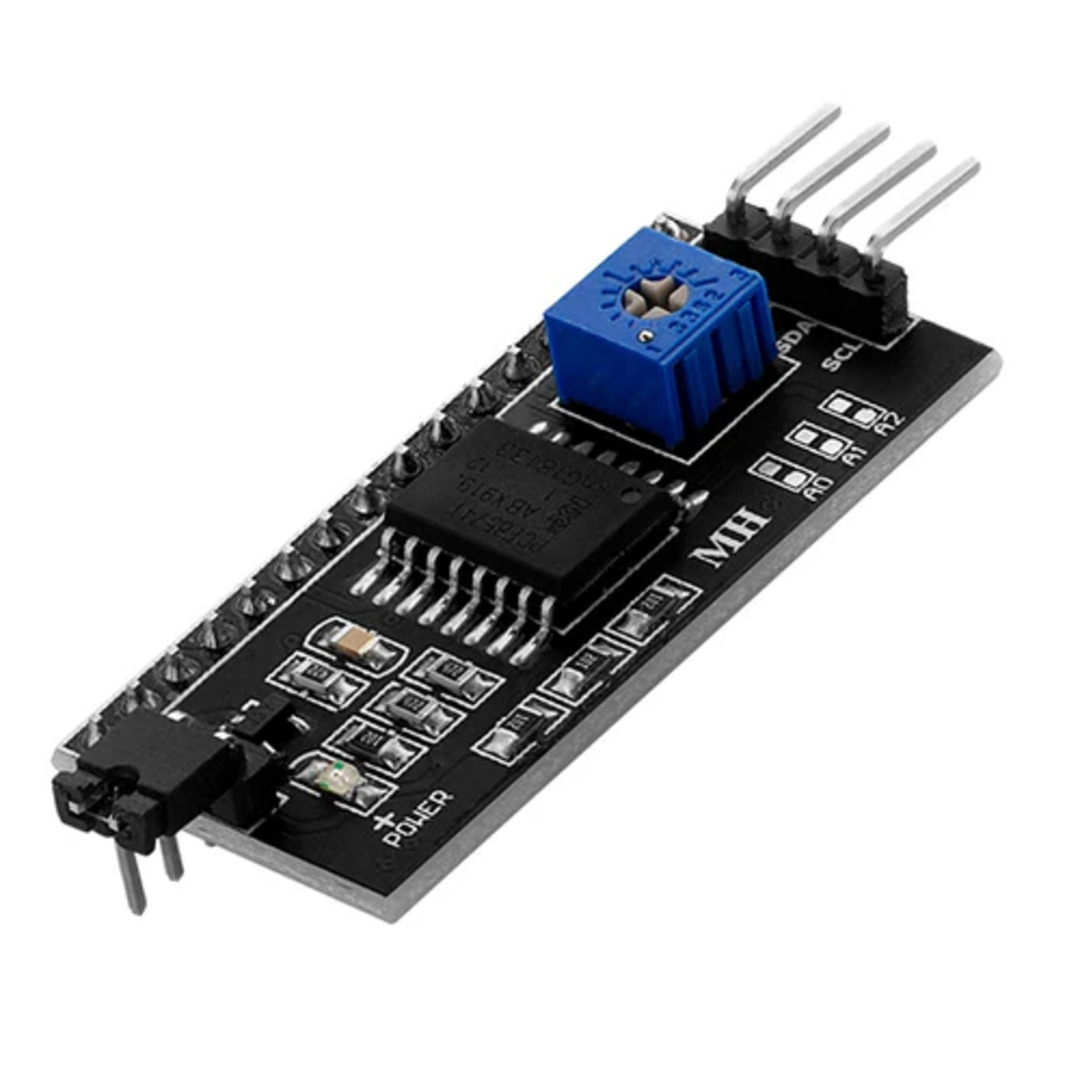

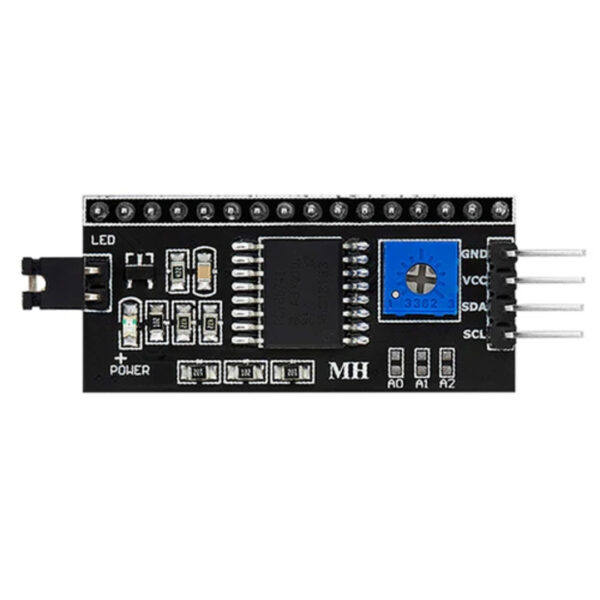

• 1 x IIC/I2C Serial Interface Adapter Module
