MINIMUM TECH FEATURES:

• Dual H-Bridge DC Motor Driver IC (L293D)
• Output Current: Up to 600 mA per channel (peak 1A)
• Motor Voltage Support: 4.5V–36V
• Logic Voltage: 5V
• Onboard 7805 Voltage Regulator
• Drives 2 DC motors or 1 Stepper Motor
• Built-in internal clamp diodes for back-EMF protection
• Separate logic and motor power pins
• Enable pins for speed control via PWM

DESCRIPTION:

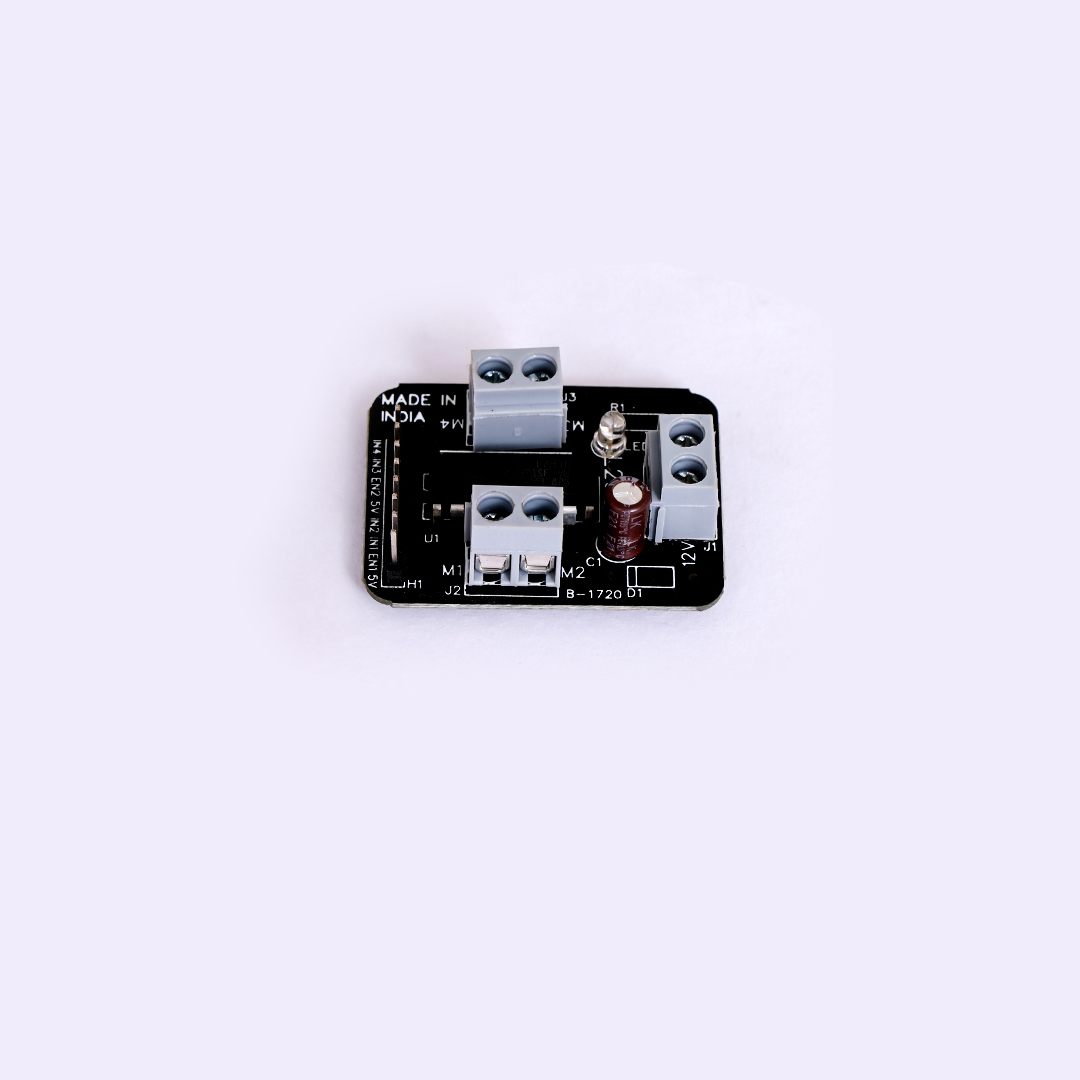

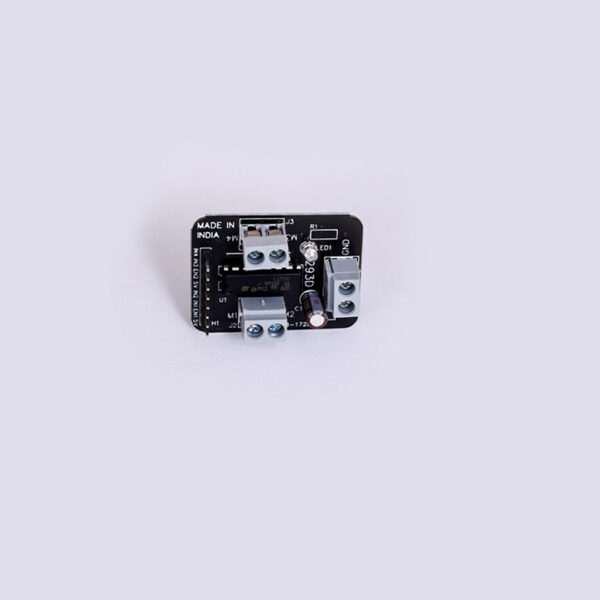

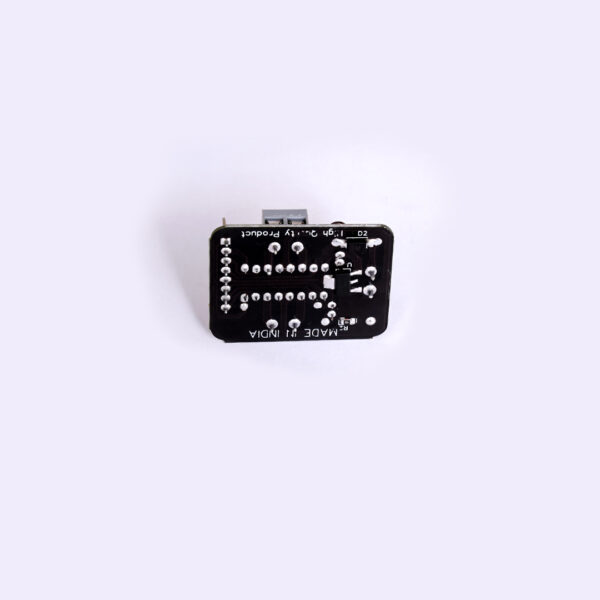

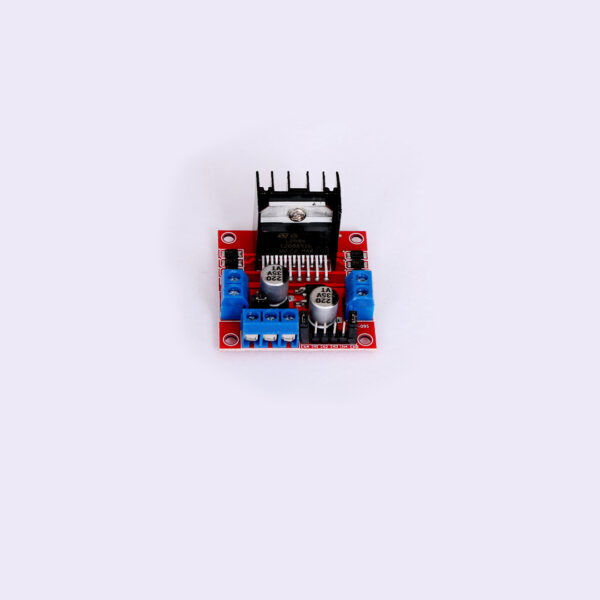

• The L293D 1A Motor Driver with onboard 7805 power IC is a dual-channel H-bridge module designed to control small to medium DC motors and stepper motors using microcontrollers like Arduino, ESP32, and Raspberry Pi.
•  The onboard 7805 regulator allows powering the logic circuitry from the motor voltage input, making it a compact, beginner-friendly motor driver solution.

SPECIFICATION:

• Driver IC: L293D Quad Half-H Bridge
• Voltage Regulator: 7805 (Fixed 5V)
• Logic Input Voltage: 5V
• Motor Supply Voltage (Vs): 4.5V–36V
• Output Current: 600 mA continuous per channel (max 1A peak)
• Number of Channels: 2
• PWM Speed Control: Supported via enable pins (EN1, EN2)
• Protection: Built-in freewheeling diodes & thermal shutdown
• Input Logic Compatibility: TTL / CMOS
• Control Pins: IN1, IN2, IN3, IN4
• Board Features: Power LED indicator, motor output terminals, screw connectors

APPLICATIONS:

• Robotics and automation projects
• Small mobile robots (Smart Cars)
• Conveyor and belt systems
• CNC/Stepper control (low-power)
• Line follower robots
• Motorized door locks / actuators
• Arduino-based motor experiments
