MINIMUM TECH FEATURES:

• Dual H-Bridge DC motor driver
• Continuous current up to 2A per channel
• Operating voltage: 5V–35V
• Logic voltage: 5V
• Onboard 5V regulator (can be enabled/disabled via jumper)
• Supports 2 DC motors or 1 stepper motor
• Direction & speed control (PWM supported)
• Overtemperature protection

DESCRIPTION:

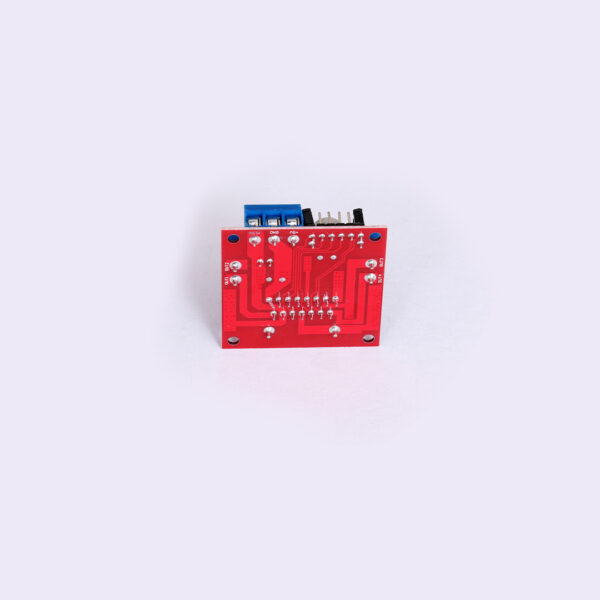

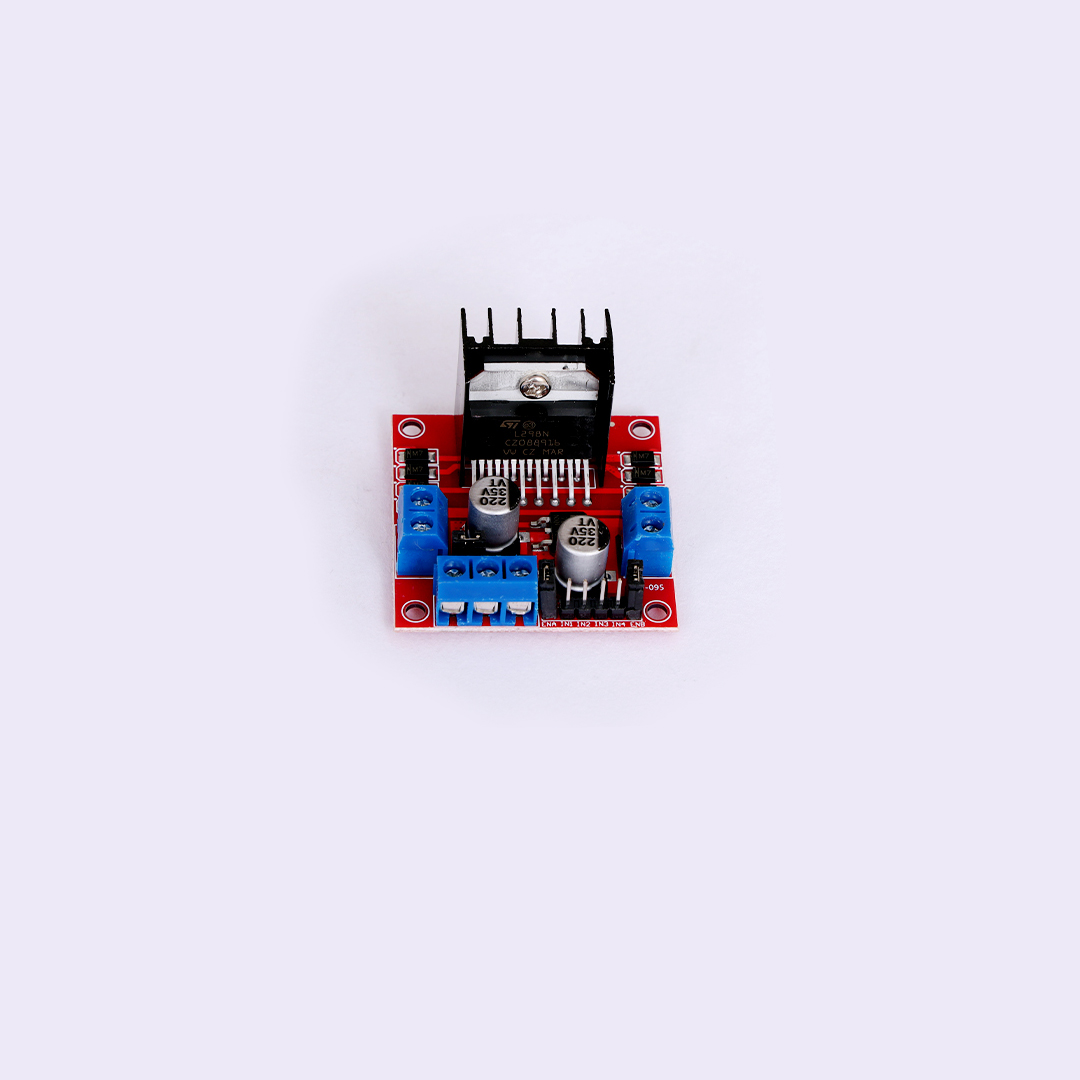

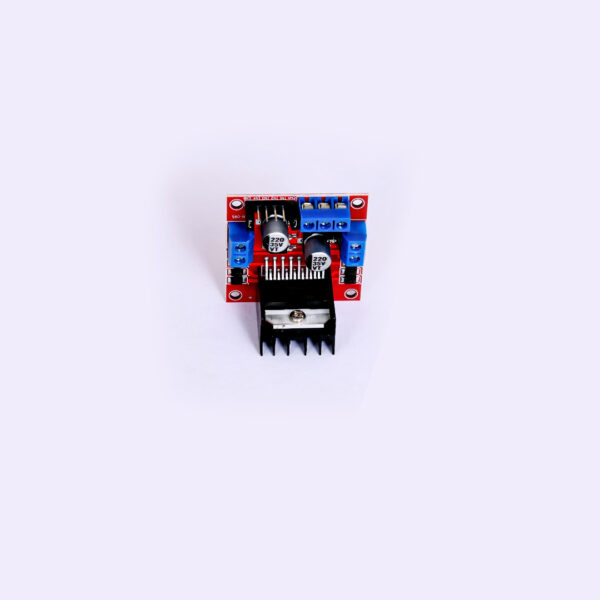

• The L298N Motor Driver Module is a dual H-Bridge driver commonly used to control DC motors and stepper motors in robotics and automation projects.
• It uses the L298N IC, providing reliable high-current control and allowing forward/reverse and PWM speed control.
• It includes an onboard 5V regulator, terminal blocks for motor connections, jumpers for mode selection, and indicator LEDs.

SPECIFICATION:

• Driver IC: L298N Dual H-Bridge
• Motor supply voltage (VM): 5V–35V
• Motor output current: Up to 2A per channel
• Logic supply voltage: +5V
• Maximum power: 25W
• Control signal voltage: 3V / 5V compatible
• Number of channels: 2
• Onboard 5V regulator: Yes (requires VIN ≥ 7V)
• Dimensions: Approx. 43 × 43 × 28 mm
• Inputs: IN1, IN2, IN3, IN4, ENA, ENB

APPLICATIONS:

• Robotics
• RC vehicles
• Motorized platforms
• Conveyor mechanisms
• Smart cars / line-following robots
• Stepper-based mechanisms
